main features

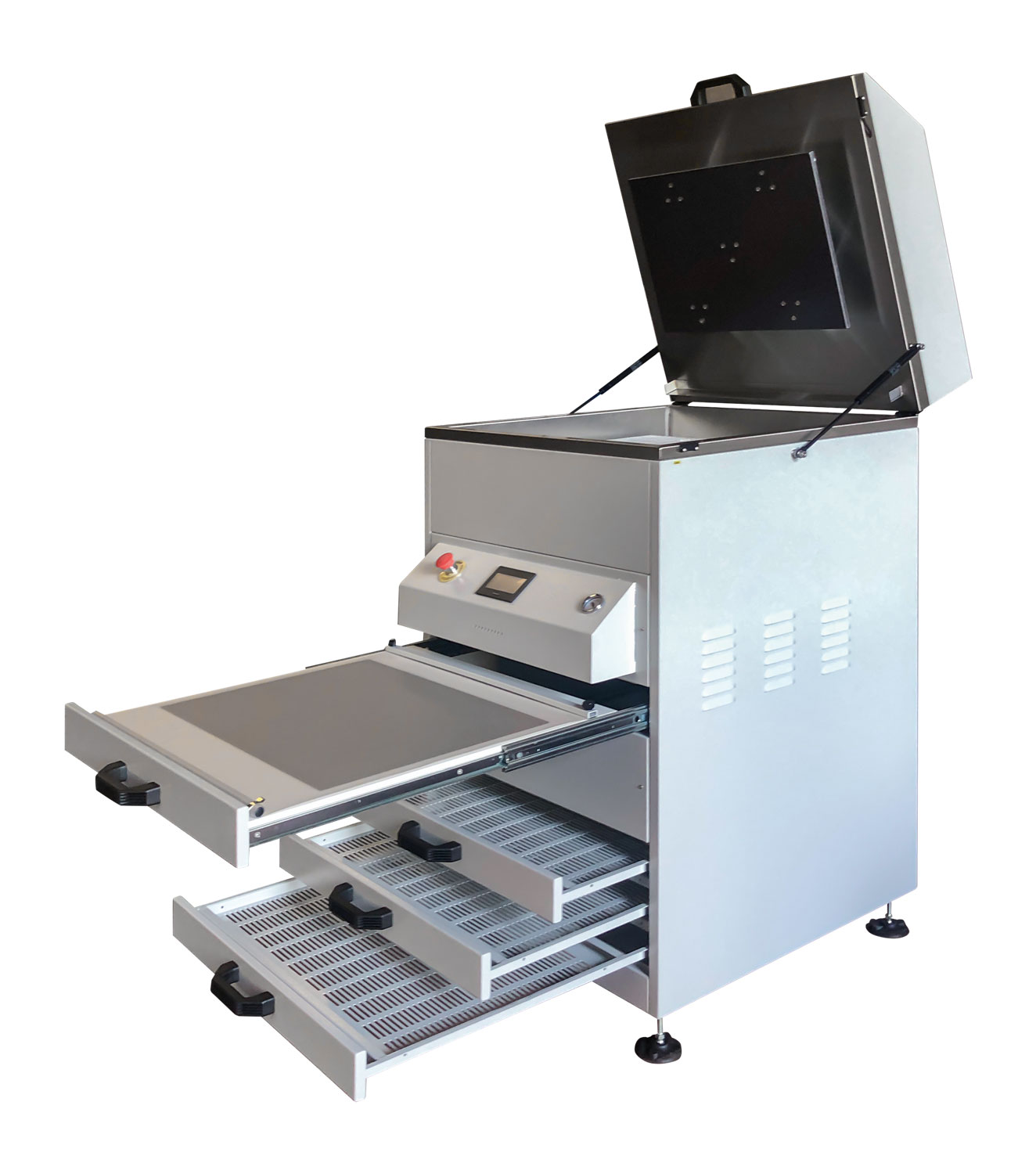

Combination processor for water washable photopolymer plates
- Independent processing sections
- Compatible with analogue and digital plates
- Washout of the whole plate surface through an orbital movement of the plate holder
- Easy manual brush segment setting
- Main exposure section equipped with LEDs indicating the status of each lamp
- Intuitive user-friendly HMI touch screen controlling all the steps of the process
- Temperature control of the wash out solution and dryer Remote connection possibility
OPTIONAL
- Sticky plate
Caratteristiche Tecniche
| MODEL | A3 | A2 | A1 | A1 Plus |
| Max Plate Dimension | 370x520 mm 14''x20'' |
530x760 mm 20''x30'' |
710x890 mm 27''x35'' |
790x1030 mm 31''x40'' |
| Dimension WxDxH cm | 75x105x128 | 108x110x128 | 145x126x128 | 145x135x128 |
| Weight kg | 200 | 290 | 520 | 540 |
| Power Supply |
400V 3PH+N+GND 50/60Hz 230V 3PH+GND 50/60Hz 230V 1PH+N+GND 50/60Hz |
400V 3PH+N+GND 50/60Hz 230V 3PH+GND 50/60Hz |
||
| Power kW | 3,7 | 7,7 | 8,4 | 8,5 |
| Tank Capacity (l) | 28 | 35 | 79 | 82 |
| Exposure UVA Lamps | 9x40W 10R L. 590 mm |
12x60W 10R L. 900 mm |
15x60W L. 1200 mm |
17x60W 10R L. 1200 mm |
| Post-Exposure UVA Lamps | 14x60W 10R L. 1200 mm |
14x60W 10R L. 1200 mm |
||
| Exposure UVC Lamps | 10x15W L. 437 mm |
12x30W L. 894 mm |
13x36W L. 1200 mm |
13x36W L. 1200 mm |
The images in this document are provided for illustrative purposes.
We reserve the right to make changes and improvements to any product described herein without notice.
